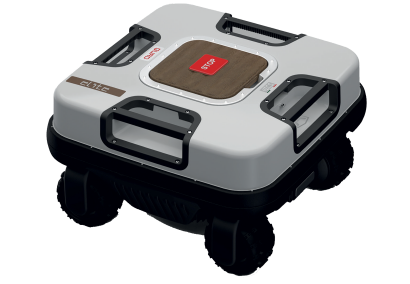

QUAD Elite

High Performance Slope Mowing

The Quad Elite is the Ambrogio robotic lawnmower dedicated to gardens with slopes of up to 75%. Thanks to its electrically steered 4 wheel drive and powerful 10Ah battery, it can handle extremely steep climbs and bumps in the lawn.

It also works effectively on the edge of the garden on slopes up to 65%.

It’s highly efficient. This is made possible by each wheel being able to steer in any direction without performing risky maneuvers even on steep slopes.

The compact, square shaped dimensions (only 53cm) make the robot’s movements look graceful on both regular and undulating terrain. The handles positioned on the 4 sides make it safe and easy to transport too.

Ambrogio robots are made from only premium parts and high grade materials that have been thoroughly tested at the Ambrogio factory in Italy and the UK. Your purchase is backed by a 6 year warranty, so you know it’s a robot that you can count on.

The robot cuts with high quality solid steel blades. Compared to robots from other brands that don’t use a solid blade, blade longevity is vastly improved. You can expect a whole season of use, whereas smaller replaceable blades will need changing every few weeks.

Also as the blades are much larger they maximize the cutting area, ensuring a clean and uniform cutting action. For added peace of mind, the robot has a rain sensor, along with an easy to use large touch screen colour LCD display ensuring the controls are simple.

QUAD Elite is also equipped with a special RADAR sensor that recognises regular shaped obstacles in the garden.

4 Wheel Driving & Steering

Touchscreen Display

RADAR for Obstacle Detection

Discreet Recharging Dock

 LATEST GENERATION MOTHERBOARD

 ZCS CONNECT

 ALL WHEEL DRIVE & ALL WHEEL STEERING

 MANAGE UP TO 8 SEPARATE AREAS

 TOUCH DISPLAY

 POWERFUL LITHIUM-ION BATTERIES

 SMART ASSISTANT

 ELECTRIC CUT HEIGHT ADJUSTMENT

 BLUETOOTH & GSM

 SLOPES UP TO 75%

“SMART PARTITION”CUTTING SYSTEM

AMICO COMPATIBLE

POWER

Max sq.mt suggested (-20%) 3500
Motor typeBrushless
Lithium-Ion Battery (25,9V)2x5Ah
Max allowable slope (%)75%
Max Slope (%)70%
Slope on the edge or perimeter wire (%)65%
Average Working Time [h]02:30
Recharge modeContact

CUTTING SYSTEM

Blade TypeSolid Stainless Steel (4 Edged)
Cutting Width [cm]29
Cutting Height (min-max) [mm]25-70 (Motorised)
Spiral CuttingYes
“Smart Partitions” Zoning Yes
+Infinity Cutting SystemYes
Eco ModeYes
Rain sensorYes
Maximum managed areas8

NAVIGATION

Navigation TypeGPS Enhanced
Compass SystemYes
Connect Module (GPS, GSM) - 1Yes

FEATURES

Weight with Batteries Incl. (Kg) 18.4
Robot Size (lxw)530 x 530 mm
Wheel ProfileFlex Rubber
Level of ProtectionIPx5

CONTROL DEVICES

User Interface Touchscreen Display
App ControlBluetooth-GSM
Bluetooth receiverYes
AMICO CompatibleYes
Smart AssistantYes

SAFETY

Obstacle DetectionYes - Radar & Motor Sensors
Lifting/Tip-over sensorYes
Push/Stop emergency ButtonYes
PIN CodePIN & Geofence

STANDARD EQUIPMENT FOR INSTALLATION

Perimeter Wire Length (m)0
Fixing Pegs10
Charging StationYes
Recharging Station CoverOptional
