Ambrogio UK

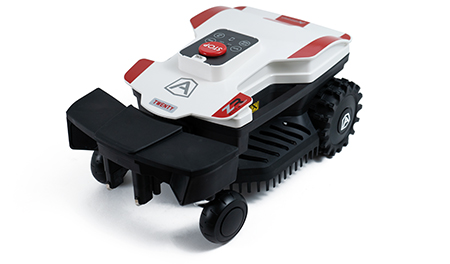

Twenty ZR

RADAR LAWN EDGE DETECTION

Twenty ZR is the new simple, compact, light, powerful and fast robot mower, which does not require the installation of perimeter wire.

The robot is equipped with the most innovative technologies, which allow it to manage and map the garden by learning its characteristics.

ZR technology integrates artificial intelligence systems with front mounted radar sensors, allowing the robot to detect grass, recognise obstacles at a distance (stationary and moving), edges and perimeters.

Once it’s finished a mowing session the Twenty ZR automatically returns back to the dock to recharge ready for the next scheduled mowing operation.

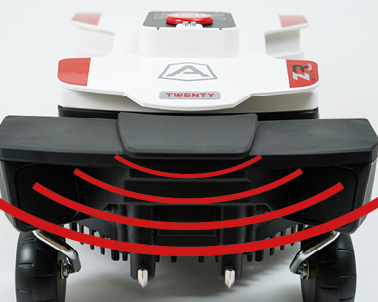

Radar Moving & Static Obstacle Detection

Rain Sensor (can be disabled)

Keypad & LED Display

Compact Design

Large Flex Grip Rubber Tyres

(Shown docked in recharging station)

Recharging Base Cover Available

 LATEST GENERATION MOTHERBOARD

 ZCS CONNECT AVAILABLE (OPTIONAL)

 HIGH EFFICIENCY BRUSHLESS MOTORS

 MANAGE UP TO 4 SEPARATE AREAS

 FLEX WHEELS

 POWERFUL LITHIUM-ION BATTERIES

 TILTING SYSTEM

 BLUETOOTH CONNECTIVITY

 SLOPES UP TO 45%

 ECO MOW SENSOR

NAVIGATION

Using the front bumper mounted radar sensors paired with advanced algorithms the Twenty ZR can tell the difference between a lawn and other surfaces. As the mower moves around the lawn, it continuously uses advanced imaging techniques to assess what surface is ahead of it. Deciding as it goes whether to mow it or navigate away.


What are suitable lawn edges?

Walls, Fences & Buildings

Any solid wall, fence or solid structure more than 9cm tall.

Hedges

The TWENTY ZR can detect hedges directly on a lawn edge.

Patios

Any flush solid surface such as a patio of 25cm width or more.

Flat Stone Edging & Flush Edging

Stone or paved edging flush with the lawn of 25cm width or more.

Solid Raised Edging

Any solid raised edge higher than 9cm.

Hoops & Arches

Lawn edging hoops and arches. Single hoops linked together or panels.

For the best operation we recommend having crisp lawn edges for the quickest edge detection.

These types of edges are suitable for the outer boundary and any internal beds, islands, or patios.

POWER

Max sq.mt suggested (-20%) 1000
Motor typeBrushless
Lithium-Ion Battery (25,9V)1x5.0Ah
Max allowable slope (%)45%
Max Slope (%)35%
Slope on the edge or perimeter wire (%)20%
Average Working Time [h]04:00
Recharge modeContact

CUTTING SYSTEM

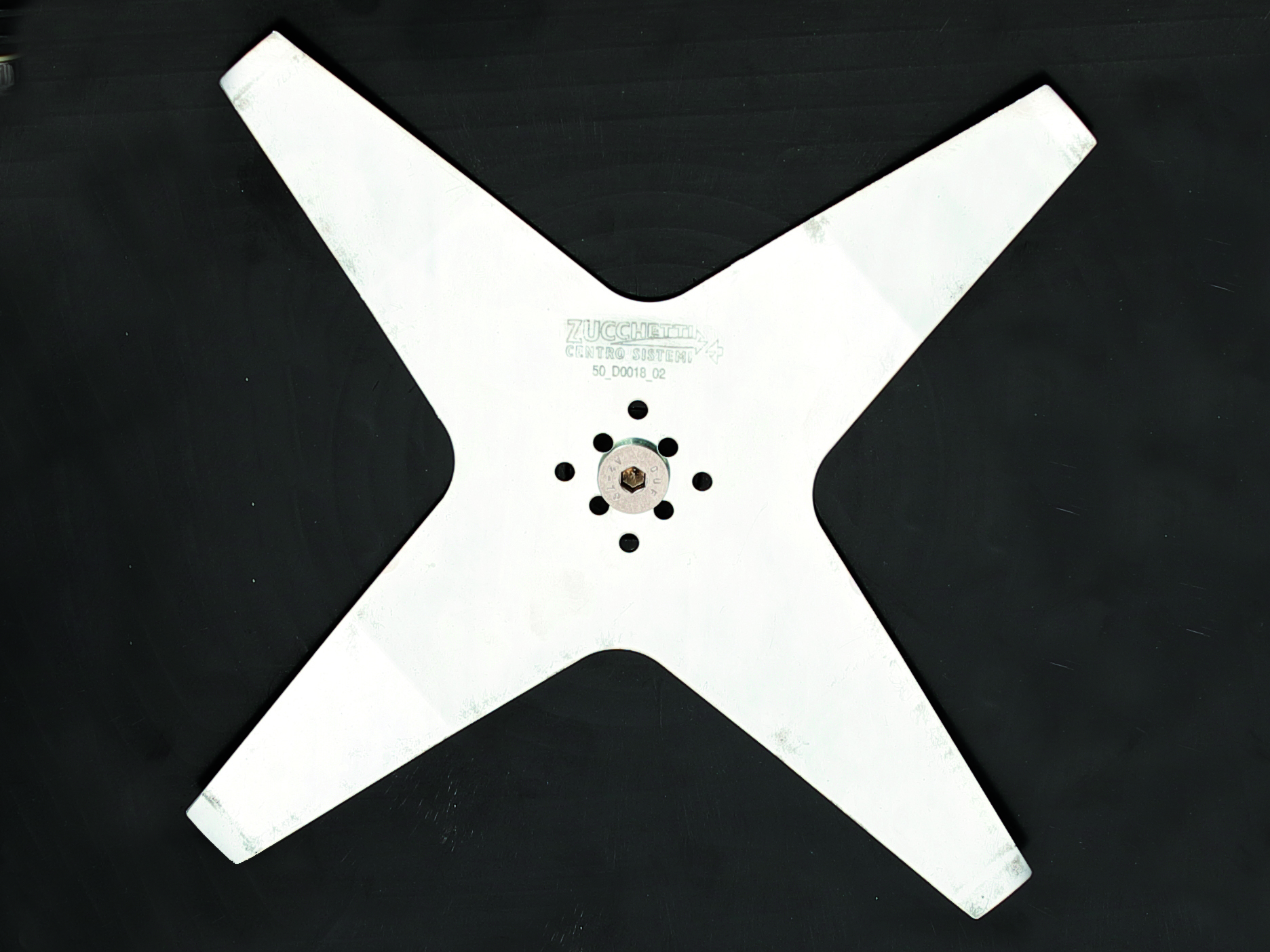

Blade Type4 Point Solid Stainless Steel Blade
Cutting Width [cm]18
Cutting Height (min-max) [mm]25-70
Spiral CuttingYes
“Smart Partitions” Zoning No
Self-LevellingYes
Eco ModeYes
Rain sensorYes
Maximum managed areas4

NAVIGATION

Navigation TypeRadar - No Perimeter Wire
Compass SystemYes
Connect Module (GPS, GSM)Optional

FEATURES

Weight with Batteries Incl. (Kg) 7.5
Robot Size (lxwxh)453x296x220 mm
Wheel ProfileWide Flex Rubber
Power Sound [dB(A)] 59
Level of ProtectionIPx5

CONTROL DEVICES

User Interface Keypad & LED
App ControlBluetooth
Bluetooth receiverYes
Amico CompatibleYes
Smart Assistant CompatibleWith Optional ZCS Connect Module Fitted

SAFETY

Lifting/Tip-over sensorYes
Push/Stop emergency ButtonYes
PIN CodePIN via App
Obstacle DetectionRadar & Bump Sensors

STANDARD EQUIPMENT FOR INSTALLATION

Wire Length (m)50 - No Perimeter Wire Required
Fixing Pegs40
Charging StationYes
Recharging Station CoverOptional
